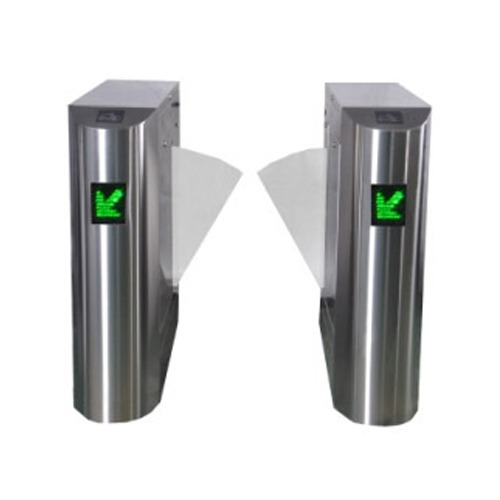

| Features | |
|---|---|
| Type | Indoor use |
| Passage clearance | Minimum 520 mm normal lane and 900 mm for wide/ handicapped entry |
| Opening/Closing Time | 0.5 sec for 520 mm passage and 1.0 sec for 900 mm passage |
| Descriptions | Specifications |
|---|---|
| Passage clearance | Minimum 520 mm normal lane and 900 mm for wide/ handicapped entry |
| Opening/Closing Time | 0.5 sec for 520 mm passage and 1.0 sec for 900 mm passage |
| PowerConsumption | Should be less than 85 Watts per lane |
| Dimension | Normal lane - L 1100 x W 250 x H 1000mm Wide Lane - L 1100 x W 450 x H 1000mm |
| Power Supply | 230V AC, 50Hz |
| Housing | 304 grade Stainless Steel |
| Drive | Torque controlled Brushless DC Servo motor |
| Intelligence | Controller should be Microprocessor based |
| Dimensions | Length: Up to 6.5m Width : 90 cm Height: 60 cm |
| Integration | Should function seamlessly after integration with any access control system |
| Safety | The optical beam installed in the housings close to the retractable panels will inhibit the closing of the panel while the person is in the area of these panels, thereby ensuring pedestrian safety |
| Logic Control | Should have Logic control for flap (Panel) operation depending upon lane configuration |
| Lane indicator | Display passage is barred or free |
| Safety Measures | Photo Electric Beams for safety + Loop Detectors |
| Spike to Spike Distance | 85mm |
| Housing | Galvanised Mild Steel Body |
| Installation depth | 600mm |
| Vehicle Load | 50 ton |
| Safety Devices | Remote Control, Smart Card Reader, Optional Beam Sensor, Loop Detectors, Biometric Devices etc (Optional) |
| Materials | ST 52 Steel |
| Finish Treatment | Customized Paint (Customer Request) Anti - Corrosion Treatment |
| Controls | Controls are installed in a Lockable panel (IP65) to be located at any required distance from barrier. |
| Safety Mechanism | In an event of a tear in a hydraulic pipe, the piston automatically locks the safety lock and the arm serves as a security block only. |
| In Case of Power Failure | Flaps (Panels) should open automatically / should remain closed |
| Drive Mechanism | The flaps are moved by mechanical arms by a shaft connected to the drive unit. The drive unit is a DC motor. The built-in micro-controller guarantees precise movement and positioning of flaps. Safety IR beam prevents the flap from closing upon an obstruction. On obstruction of flaps, the controlling logic detects the abnormal condition and reverse the flap to the fully open position. |
| Throughput | Approximate 22 -25 persons in a minute (excluding card validation time) |
| Operation | Should be Bi-directional |
| Normal Mode of Operation | Normally closed |
| Duty Cycle | Intensive use |
| Tailgate Detection | Aensor shall be placed to detect passage of two person with single access |
| Protection Rating | All Housing and internal parts should be made of rust & corrosion free metals or alloys of high strength with suitable Epoxy coating as applicable |
